7443551221
Manufacturer:
Wurth Electronics
Mfr.Part #:
7443551221
Datasheet:
Description:

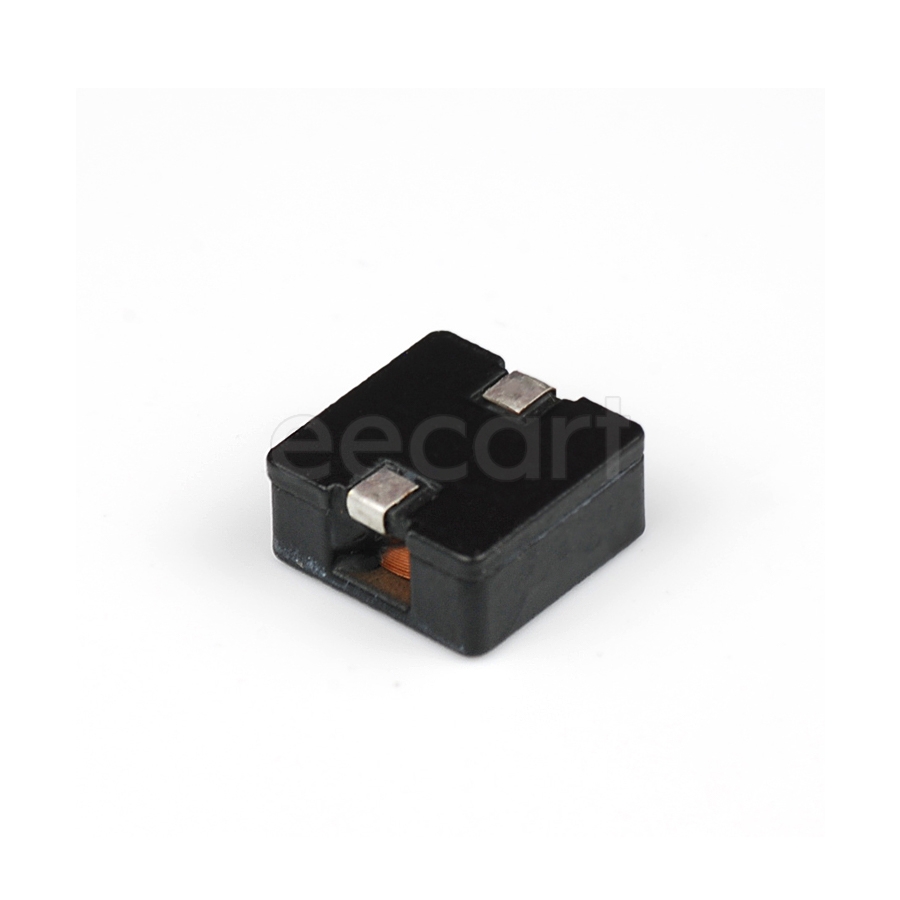

Fixed Inductors 13.00mmL×12.80mmW×6.50mmH SMD/SMT 22 µH 20 % 6 A 24.7 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 6.5 mm |
| Length | 13.2 mm |
| Width | 12.8 mm |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -40 °C |
| Height | 6.2 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Ratings | AEC-Q200 |
| Self Resonant Frequency | 14 MHz |
| Type | Wirewound |
| DC Resistance (DCR) | 24.7 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 22 µH |
| inductance tolerance | 20 % |
| Saturation Current | 6.5 A |
| Current Rating | 6 A |
Stock: 2021
Distributors
pcbx
pcbxUnit Price$2.17742
Ext.Price$2.17742
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.17742 | $2.17742 |
| 10 | $2.13347 | $21.33470 |
| 25 | $2.05051 | $51.26275 |
| 50 | $1.97079 | $98.53950 |
| 100 | $1.88945 | $188.94500 |
| 300 | $1.40771 | $422.31300 |
